Price ₹
15,000.00
| General Details: | |

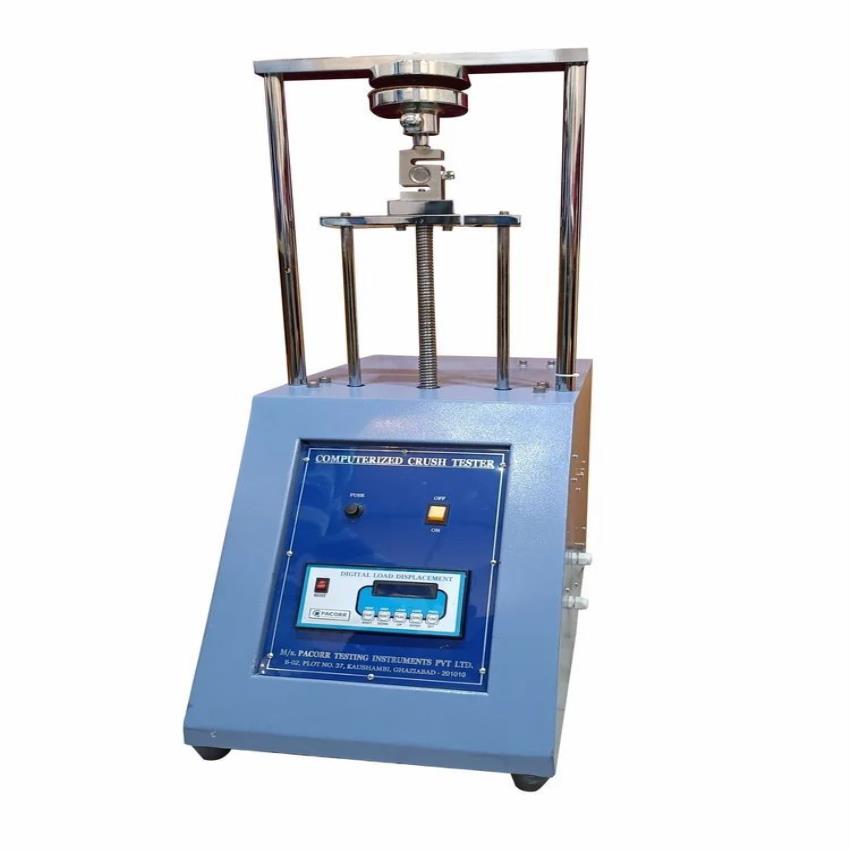

| Model | Digital Edge Crush Tester, 220 V |
| Display Type | Digital |
| Voltage | 220 V |
| Frequency | 50 hz |
| Others: | |
| Brand | Pacorr |
| Country of Origin | Made in India |
| Platen Diameter | 10 mm |
| Test Speed | 12.5 mm/min |
Price ₹
20,000.00
| General Details: | |

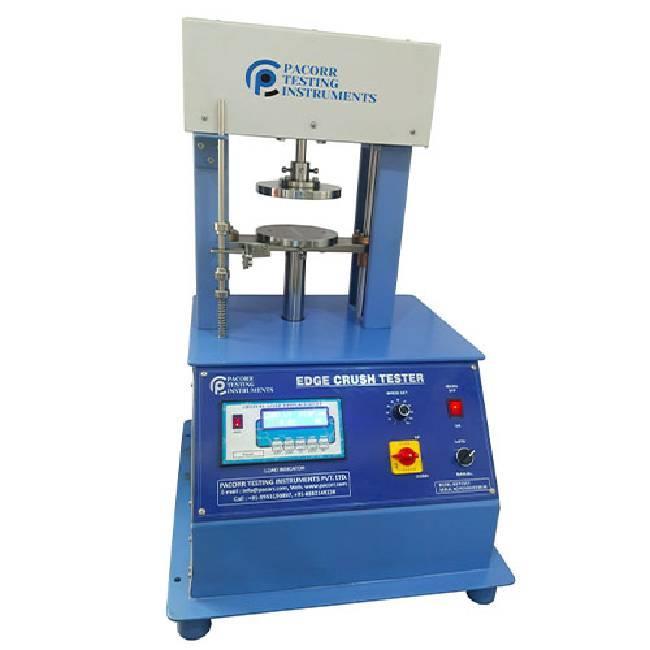

| Model | Edge Crush Tester / ECT / RCT / FCT |
| Others: | |
| Accuracy | ±1% of the reading |
| Accuracy | ± 1% |
| Capacity | 100Kgf |
| Compression Speed | Adjustable |
| Display | Digital / Touchscreen (optional) |
| Least count | 0.02 kgf |
| Load Range | Up to 1000 N (customizable) |
| Material of Construction | M.S Powder coated and Hard Chromed |
| Measuring Unit | kgf |
| Motor | 0.5hp, 3 phase (Crompton/ Bharat Bijlee make) with Gearbox |
| Platen Size | 150mm Diameter.(Upper & Lower) |
| Power | 220 VAC, Single Phase, 50Hz |
| Related Standards | IS 7063-2 |
| Sample Size | As per ASTM / TAPPI / ISO standards |
| Speed Drive | Crompton/ Delta make |
| Speed Range | 10mm/min to 50mm/min. |
| Standards Met | ASTM D7030, TAPPI T811, ISO 3037 |
| Test Modes | ECT, RCT (Ring Crush Test), FCT (Flat Crush Test) |
| Test speed | 12.5 mm/min. |
