Price ₹
30,000.00
| General Details: | |

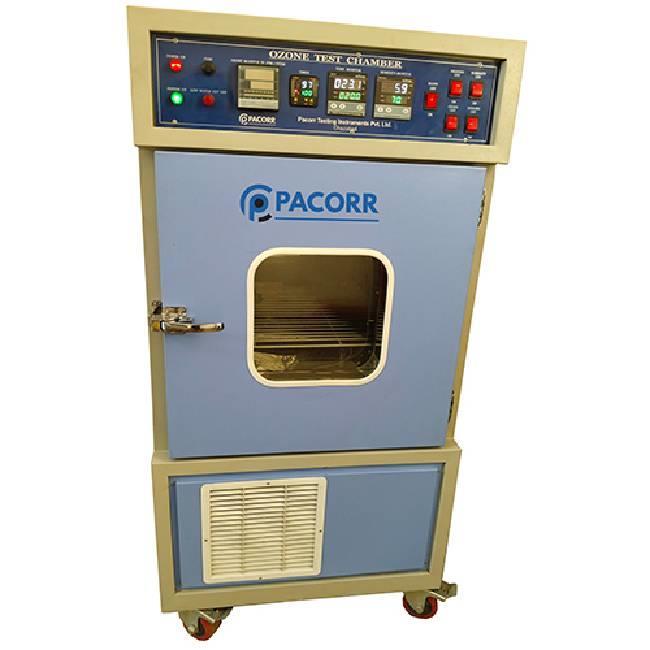

| Model | Ozone Test Chamber |
| Others: | |
| Applications | Rubber products with static tensile deformation like vulcanized rubber, cable insulations |
| Benefits | Accelerated testing, high precision, versatile applications |
| Dynamic Pull Frequency | 60 Pulls per min. |
| Features | Advanced tech, precise conditions replication, energy-efficient |
| Humidity Range | Ambient to 95%RH |
| Inner Chamber Material | SS 304 |
| Internal Dimensions (W x H x D) | 500mm x 500mm x 500 mm |
| Model Number | PC-OZ-14 |
| Outer Chamber Material | MS Powder Coated |
| Ozone Concentration | 50 to 250 PPHM |
| Ozone Diffuser | Yes, Enabled |
| Ozone Monitor | Microprocessor-based LCD Screen |
| Ozone Sensor Type | Electro-Mechanical |
| Power Supply Requirement | Single Phase, 230 V AC, 50Hz |
| Standards | Complies with ASTM D1149-18, ISO 1431-3:2017 |
| Temperature Accuracy | ±2°C |
| Temperature Range | Ambient to +70°C |
| Test Chamber Volume | 125 Lt |
| Test Gas Flow Rate | 1 to 5 Litres per minute |
| The rotational speed of sample holder | 5 rpm |
| Timer | Upto 999 Hours |
| Type of Test | Static & Dynamic testing allowed |
| Utility | Evaluates rubber's behavior and quality under ozone exposure |
